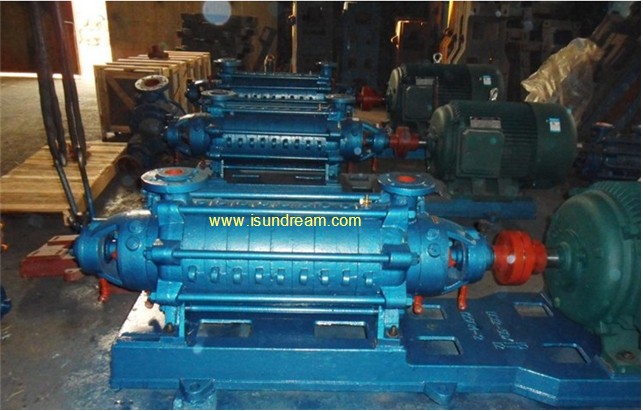

GC多級鍋爐給水泵
1：GC鍋爐給水泵
產品概述:
GC型水泵系單吸多級分段式離心泵,供輸送清水及物理化學性質類似于水的液體之用。本型水泵揚程在46m～576m時,流量為6m～55m3/h,液體的最高溫度低于110℃。適合于鍋爐給水,工廠及城市給水之用。水泵配用Y型電動機
用途：適合于鍋爐給水，礦山排水、工廠及城市給水
結構特點：GC型水泵是臥式、單吸多級、分段式離心泵
介質溫度：≤105℃
處理介質：清水及物理化學性質類似水的液體
驅動方式：電動機驅動
流量范圍：6mз/h?-55mз/h
揚程范圍：46m-430m
性能參數:
?
|
型號 |
流量 |
揚程 |
轉速 |
效率 |
功率（KW） |
||
|
軸功率 |
電機功率 |
||||||
|
1.5GC-5×2 |
6 |
46 |
2950 |
38 |
2 |
3 |
|
|
1.5GC-5×3 |
6 |
49 |
2950 |
38 |
3 |
4 |
|
|
1.5GC-5×4 |
6 |
92 |
2950 |
38 |
4 |
5.5 |
|
|
1.5GC-5×5 |
6 |
115 |
2950 |
38 |
5 |
5.5 |
|
|
1.5GC-5×6 |
6 |
138 |
2950 |
38 |
6 |
7.5 |
|
|
1.5GC-5×7 |
6 |
161 |
2950 |
38 |
7 |
7.5 |
|
|
1.5GC-5×8 |
6 |
184 |
2950 |
38 |
8 |
11 |
|
|
1.5GC-5×9 |
6 |
207 |
2950 |
38 |
9 |
11 |
|
|
2GC-5×2 |
10 |
64 |
2950 |
39.6 |
4.4 |
7.5 |
|
|
2GC-5×3 |
10 |
96 |
2950 |
39.6 |
6.6 |
11 |
|
|
2GC-5×4 |
10 |
128 |
2950 |
39.6 |
8.8 |
11 |
|
|
2GC-5×5 |
10 |
160 |
2950 |
39.6 |
11.0 |
15 |
|
|
2GC-5×6 |
10 |
192 |
2950 |
39.6 |
13.2 |
22 |
|
|
2GC-5×7 |
10 |
224 |
2950 |
39.6 |
15.4 |
22 |
|
|
2GC-5×8 |
10 |
256 |
2950 |
39.6 |
17.6 |
30 |
|
|
2GC-5×9 |
10 |
288 |
2950 |
39.6 |
19.8 |
30 |
|
|
2.5GC-6×2 |
15 |
62 |
2950 |
43.7 |
5.8 |
7.5 |
|
|
20 |
54 |
2950 |
47.4 |
6.2 |
|||
|
2.5GC-6×3 |
15 |
93 |
2950 |
43.7 |
8.7 |
11 |
|
|
20 |
81 |
2950 |
47.4 |
9.3 |
|||
|
2.5GC-6×4 |
15 |
124 |
2950 |
43.7 |
11.6 |
15 |
|
|
20 |
108 |
2950 |
47.4 |
12.4 |
|||
|
2.5GC-6×5 |
15 |
155 |
2950 |
43.7 |
14.5 |
22 |
|
|
20 |
135 |
2950 |
47.4 |
15.5 |
|||
|
2.5GC-6×6 |
15 |
186 |
2950 |
43.7 |
17.4 |
22 |
|
|
20 |
162 |
2950 |
47.4 |
18.6 |
|||
|
2.5GC-6×7 |
15 |
217 |
2950 |
43.7 |
20.2 |
30 |
|
|
20 |
189 |
2950 |
47.4 |
21.7 |
|||
|
2.5GC-6×8 |
15 |
248 |
2950 |
43.7 |
23.2 |
30 |
|
|
20 |
216 |
2950 |
47.4 |
24.8 |
|||
|
2.5GC-6×9 |
15 |
279 |
2950 |
43.7 |
26.1 |
37 |
|
|
20 |
243 |
2950 |
47.4 |
27.9 |
|||
|
4GC-8×2 |
30 |
86 |
2950 |
51 |
13.8 |
22 |
|
|
45 |
82 |
2950 |
60 |
16.8 |
|||
|
55 |
76 |
2950 |
62.5 |
18.1 |
|||
|
4GC-8×3 |
30 |
129 |
2950 |
51 |
20.7 |
37 |
|
|
45 |
123 |
2950 |
60 |
25.2 |
|||
|
55 |
114 |
2950 |
62.5 |
27.2 |
|||
|
4GC-8×4 |
30 |
172 |
2950 |
51 |
27.6 |
37 |
|
|
45 |
164 |
2950 |
60 |
27.6 |
|||
|
55 |
152 |
2950 |
62.5 |
36.2 |
|||
|
4GC-8×5 |
30 |
215 |
2950 |
51 |
34.5 |
55 |
|
|
45 |
205 |
2950 |
60 |
42.0 |
|||
|
55 |
190 |
2950 |
62.5 |
45.3 |
|||
|
4GC-8×6 |
30 |
258 |
2950 |
51 |
41.4 |
55 |
|
|
45 |
246 |
2950 |
60 |
50.4 |
|||
|
55 |
228 |
2950 |
62.5 |
54.1 |
|||
|
4GC-8×7 |
30 |
301 |
2950 |
51 |
48.2 |
75 |
|
|
45 |
287 |
2950 |
60 |
58.8 |
|||
|
55 |
266 |
2950 |
62.5 |
63.4 |
|||
|
4GC-8×8 |
30 |
344 |
2950 |
51 |
55.0 |
75 |
|
|
45 |
328 |
2950 |
60 |
67.0 |
|||
|
55 |
304 |
2950 |
62.5 |
73.0 |
|||
|
4GC-8×9 |
30 |
387 |
2950 |
51 |
62.0 |
100 |
|
|
45 |
369 |
2950 |
60 |
75.5 |
|||
|
55 |
342 |
2950 |
62.5 |
82.0 |
|||
|
4GC-8×10 |
30 |
430 |
2950 |
51 |
69.0 |
100 |
|
|
45 |
410 |
2950 |
60 |
84.0 |
|||
|
55 |
380 |
2950 |
62.5 |
91.0 |
|||
?
