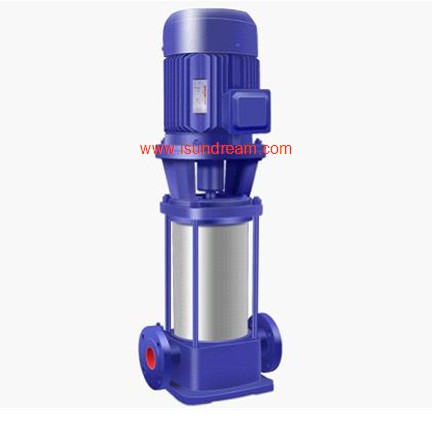

GDL型立式多級管道泵
產品概述:
GDL型立式多級管道泵?是最新泵型,具有節能、占地面積小、安裝方便、性能穩定等特點。外套用1Cr18Ni9Ti優質不銹鋼,軸封用耐磨機械密封,無泄漏,使用壽命長。以水力平衡解決軸向力,因而泵運轉平穩,低噪音,安裝條件優于DL型泵,可以簡便安裝于任一段水平管路中間。完全能滿足高層建筑、深井礦等的給排水及消防設施需要,是廣大行業冷熱水或一般介質、理化性質類似水等液體輸送的最佳泵型。使用溫度:≤100℃,壓力≤0.6MPa(16kg/cm2)。
使用范圍:
立式離心泵，供輸送清水及物理性質似清水的其它液體之用，使用介質溫度不超過80℃，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離送水、采暖、浴室等冷暖水循環?增壓及設備配套等。?適用于能源、冶金、木材加工、化工、紡織、造紙及飯店、浴室、賓館等鍋爐熱水增壓循環輸送及城市采暖系統循環用泵，使用介質溫度不超過120℃。?
適用于輕紡、石油、化工、醫藥、衛生、食品、煉油等工業輸送化學腐蝕性液體。
性能參數:
?
|
型號 |
流量 |
揚程 |
吸程 |
電機功率 |
|
25GDL2-12×3 |
2 |
36 |
7.5 |
1.1 |
|
25GDL2-12×4 |
48 |
1.1 |
||
|
25GDL2-12×5 |
60 |
1.5 |
||
|
25GDL2-12×6 |
72 |
1.5 |
||
|
25GDL2-12×7 |
84 |
2.2 |
||
|
25GDL2-12×8 |
96 |
2.2 |
||
|
25GDL2-12×9 |
108 |
2.2 |
||
|
25GDL2-12×10 |
120 |
3 |
||
|
25GDL2-12×11 |
132 |
3 |
||
|
25GDL2-12×12 |
144 |
3 |
||
|
25GDL4-11×3 |
4 |
33 |
1.1 |
|
|
25GDL4-11×4 |
44 |
1.5 |
||
|
25GDL4-11×5 |
55 |
2.2 |
||
|
25GDL4-11×6 |
66 |
2.2 |
||
|
25GDL4-11×7 |
77 |
3 |
||
|
25GDL4-11×8 |
88 |
3 |
||
|
25GDL4-11×9 |
99 |
3 |
||
|
25GDL4-11×10 |
110 |
4 |
||
|
25GDL4-11×11 |
121 |
4 |
||
|
25GDL4-11×12 |
132 |
4 |
||
|
25GDL4-11×13 |
143 |
4 |
||
|
40GDL6-12×3 |
6 |
36 |
1.5 |
|
|
40GDL6-12×4 |
48 |
2.2 |
||
|
40GDL6-12×5 |
60 |
2.2 |
||
|
40GDL6-12×6 |
72 |
3 |
||
|
40GDL6-12×7 |
84 |
3 |
||
|
40GDL6-12×8 |
96 |
4 |
||
|
40GDL6-12×9 |
108 |
4 |
||
|
40GDL6-12×10 |
120 |
4 |
||
|
40GDL6-12×11 |
132 |
5.5 |
||
|
40GDL6-12×12 |
144 |
5.5 |
||
|
50GDL12-15×2 |
12 |
30 |
7 |
2.2 |
|
50GDL12-15×3 |
45 |
3 |
||
|
50GDL12-15×4 |
60 |
4 |
||
|
50GDL12-15×5 |
75 |
5.5 |
||
|
50GDL12-15×6 |
90 |
5.5 |
||
|
50GDL12-15×7 |
105 |
7.5 |
||
|
50GDL12-15×8 |
120 |
75 |
||
|
50GDL12-15×9 |
135 |
11 |
||
|
50GDL12-15×10 |
150 |
11 |
||
|
50GDL18-15×3 |
18 |
45 |
4 |
|
|
50GDL18-15×4 |
60 |
5.5 |
||
|
50GDL18-15×5 |
75 |
7.5 |
||
|
50GDL18-15×6 |
90 |
7.5 |
||
|
50GDL18-15×7 |
105 |
11 |
||
|
50GDL18-15×8 |
120 |
11 |
||
|
50GDL18-15×9 |
135 |
15 |
||
|
50GDL18-15×10 |
150 |
15 |
||
|
65GDL24-12×2 |
24 |
24 |
6 |
3 |
|
65GDL24-12×3 |
36 |
4 |
||
|
65GDL24-12×4 |
48 |
5.5 |
||
|
65GDL24-12×5 |
60 |
7.5 |
||
|
65GDL24-12×6 |
72 |
7.5 |
||
|
6S5GDL24-12×7 |
84 |
11 |
||
|
65GDL24-12×8 |
96 |
11 |
||
|
65GDL24-12×9 |
108 |
15 |
||
|
65GDL24-12×10 |
120 |
15 |
||
|
80GDL36-12×2 |
36 |
24 |
5.5 |
4 |
|
80GDL36-12×3 |
36 |
5.5 |
||
|
80GDL36-12×4 |
48 |
7.5 |
||
|
80GDL36-12×5 |
60 |
11 |
||
|
80GDL36-12×6 |
72 |
11 |
||
|
80GDL36-12×7 |
84 |
15 |
||
|
80GDL36-12×8 |
96 |
15 |
||
|
80GDL36-12×9 |
108 |
18.5 |
||
|
80GDL36-12×10 |
120 |
18.5 |
||
|
80GDL54-14×2 |
54 |
28 |
5 |
7.5 |
|
80GDL54-14×3 |
42 |
11 |
||
|
80GDL54-14×4 |
56 |
15 |
||
|
80GDL54-14×5 |
70 |
18.5 |
||
|
80GDL54-14×6 |
84 |
18.5 |
||
|
80GDL54-14×7 |
98 |
22 |
||
|
100GDL72-14×2 |
72 |
28 |
4.5 |
11 |
|
100GDL72-14×3 |
42 |
15 |
||
|
100GDL72-14×4 |
56 |
18.5 |
||
|
100GDL72-14×5 |
70 |
22 |
||
|
100GDL72-14×6 |
84 |
30 |
||
|
100GDL72-14×7 |
98 |
30 |
?
