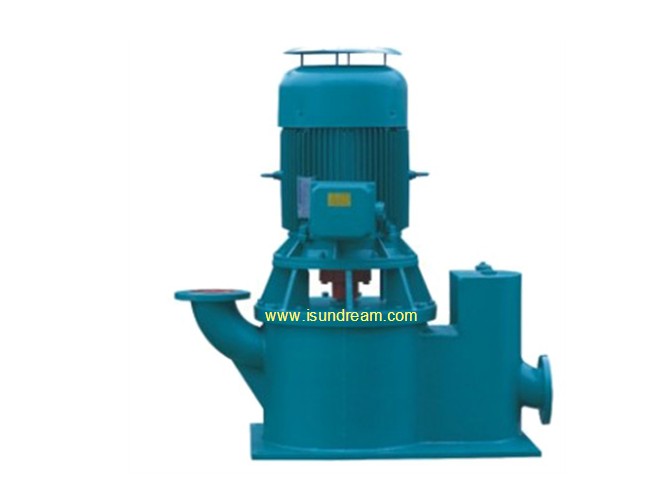

WLZ、WZY型無泄漏立式自吸泵
概 述
WLZ、WZY型無泄漏立式自吸泵是填補國內空白的首創產品（專利號ZL200320114083.4），廣泛應用于石油、化工、冶金、電力、鋼鐵、采礦、造紙、電渡、環保、消防、建筑、污水處理等行業，部分替代液下泵、長軸泵、潛水潛污泵或經常啟動的情況下使用的泵，輸送清水、海水、含較小顆粒（不含纖維狀物質）的污水及工業廢水，油料或各種腐蝕性介質。
型號意義
100WLZ（WZY）100-32FⅡ-L
100 —— 進、出口直徑100mm
WLZ —— 無泄漏立式自吸泵
WZY —— 下吸式無泄漏立式自吸泵
100 —— 設計點流量100m3/h
32 —— 設計點揚程32m
F —— 采用副葉輪密封
Ⅱ—— 材料類別Ⅱ類（Ⅰ類不標注）
L —— 液下深度mm
性能范圍（設計點）
流量：11.2～720m3/h
揚程：10～100m
適用工況
1、輸送介質的溫度小于100℃。
2、輸送介質的固相物容積比在2％以下。
3、輸送介質的運動粘度為（7～23）×10－6㎡/s。
4、輸送介質的密度小于1100kg/m3。
5、輸送介質的固體顆粒直徑（單位mm）：
?
?
|
泵口徑
|
50
|
65～80
|
100～125
|
150～200
|
250～300
|
|
顆粒直徑
|
<3
|
<3.5
|
<4
|
<4.5
|
<5
|
?
結構特點
與WFB型自吸泵相比，WLZ（WZY）型自吸泵具有明顯技術優勢：
1、水泵葉輪為閉式結構，效率較WFB泵葉輪采用的開式結構高10％～15％，同性能參數泵所配電機功率普遍低一個檔次，節能顯著，同時，葉輪汽蝕性能好，安裝允許吸深較WFB泵深0.5～1m。
2、水泵自吸采用“多通道葉片式氣水混合分離器（自吸盤）”，具有快速完成自吸過程的突出特點，較WFB型泵采用單蝸殼式壓水室自吸時間縮短1/3～1/2以上，而且泵體積小，重量輕。
3、進水型式有兩種：WLZ型泵采用管道式結構，進、出口可在平面360°任何方位吸入排出。WZY型泵采用下吸式，排出口可在平面270°任何方向。檢修水泵時，均無需拆卸進、出口管道，特別是WZY型占地面積小，節省基建投資。
4、密封采用多面連環流體動力密封，由副葉輪密封和停機密封組成，WFB型流體動力密封未設專用停機密封，不適用于頻繁啟動場合。
5、聯接方式為水泵和電機剛性直聯。從電機端俯視，泵為順時針方向旋轉。
6、水泵進口無需像WFB泵那樣帶止回閥或電磁真空破壞閥等輔助設備，本身具有自動破壞虹吸的U型管特殊結構和空氣平衡孔，停機時，虹吸作用不能抽空泵內儲液，因此，只要首次運行時注滿液體，以后運行無需加液，真正實現一次注液，終身受用。
7、水泵可配備控制柜，它具有根據液體自動啟停和過載報警等多種功能，實現無人操作，自動工作。
材 料
?
?
|
材料
介質
零件
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
|
清水
|
污水
|
海水或腐蝕性介質
|
||
|
泵 體
|
Q235-A
|
Q235-A
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
泵蓋
|
HT250
|
HT250
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
葉 輪
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
自吸盤
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
泵 軸
|
45
|
2Cr13
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
|
密封環
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
副葉輪
|
HT250
|
HT250
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
連接管
|
Q235-A
|
Q235-A
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
電機座
|
Q235-A
|
Q235-A
|
Q235-A
|
Q235-A
|
?
注：材料可根據用戶要求選配。
Type WLZ、WZY Vertical Non-Leakage Self-suction Pump
General
Type WLZ、WZY pump which designed and developed by our factory is our country’s pioneering product (Patent No. 200320114083.4). It is widely used in the fields of petroleum, chemical, metallurgy, power station, steel, mine, paper-making, electrodeposit, environmental protection, fire-extinguishing, architecture and sewage-treating. Part of them can instead of inundated pump, long-shaft pump or pump started frequently. It is suitable for delivering clear water, seawater, sewage with little particles (no fibre), industrial waste water, oil and other medium with corrosion.
Nomenclature
100WLZ(WZY)100-32FⅡ-L
100—Inlet、outlet diameter of pump is 100mm
WLZ—Vertical non-leakage self-suction pump
WZY—Vertical non-leakage self-suction pump with suction downward
100—The capacity is 100m3/h at design point
32—The head is 32m at design point
F—Adopt vice-impeller for sealing
Ⅱ—Material sort (No indication, when the material is Ⅰ)
L—Submerged depth mm
Range of performance (Design point)
Capacity: 11.2～720m3/h,
Head: 10～100m
Application
1.The temperature of medium is below 100℃.
2.The capacity ratio of medium is under 2%.
3.The viscosity of medium is (7～23)×10-6m2/s..
4.The density of medium is below 1100kg/m3.
3.The particle diameter of medium (unit: mm)
|
泵口徑Pump Diameter
|
50
|
65～80
|
100～125
|
150～200
|
250～300
|
|
顆粒直徑Particle Diameter
|
＜3
|
＜3.5
|
＜4
|
＜4.5
|
＜5
|
Construction feature
Type WLZ (WZY) self-suction pump has more advantages than type WFB self-suction pump. The feature is as following:
1. The impeller is closed structure with excellent performance. Its efficiency is 10%～15% higher and permissible installing suction depth is 0.5～1m deeper than that of type WFB pump with opened impeller. Compared with other pumps with the same performance parameter, the motor power of this kind pump can be more low, so it saves more energy.
2. Pump adopts air-water mixed vane segregator with many passages (self-suction disc) for suction, the suction speed is more fast and its self-suction time is 1/3～1/2 shorter than that of type WFB pump with single volute pressure water chamber. The pump has small cubage and light weight.
3. There are two types for water entering：Type WLZ pump adopts pipe-structure with inlet and outlet installed at any angle of plane 360°. Type WZY pump’s suction mouth is downward and outlet can be installed at any angle of plane 270°.It has the features of space-saving and less cost for construction. It needn’t dismantle inlet and outlet pipes while maintenance.
4. Seal uses dynamical sealing which includes vice-impeller sealing and breakdown sealing. But type WFB pump has no special breakdown sealing and it is not suitable for start-up frequently.
5. Connection: Pump is connected with motor through rigid coupling. View from motor end , the rotating direction of pump is clockwise.
6.It is unnecessary to fix check valve or electromagnetism vacuum-destroy valve in pump inlet, it has U pipe which can automatically break siphon and air-balance hole, when pump stops operating, siphon can not pump all water out of pump , so only when pump first starts, it should be poured liquid.
7. Pump Can be equipped with controller which can automatically start and stop pump according to liquid level, and give an alarm for over loading, pump can work automatically without any help of people.
Material
|
材料Material
介質 Medium
零件 Part
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
|
清水Clear Water
|
污水Sewage
|
海水或腐蝕性介質
Seawater or corrosive medium
|
||
|
泵 體 Pump Casing
|
Q235-A
|
Q235-A
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
葉 輪 Impeller
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
自吸盤 Self-Suction Disk
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
泵 軸 Pump Shaft
|
45
|
2Cr13
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
|
密封環Sealing Ring
|
HT250
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
副葉輪 Vice-Impeller
|
HT250
|
HT250
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
密封蓋Sealing Cover
|
HT250
|
HT250
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
軸承體 Bearing Body
|
Q235-A
|
Q235-A
|
1Cr18Ni9Ti
|
0Cr17Ni12Mo2
|
|
電機座Motor Support
|
Q235-A
|
Q235-A
|
Q235-A
|
Q235-A
|
?
